Broken Bolt Extraction on a Track Frame Done Right

A broken or seized bolt in a track frame is one of those problems that stops a job cold. It looks small, but the wrong move - drilling too deep, snapping an extractor, or damaging the threads - can turn a simple fix into a major repair. We've seen it happen. That's exactly why this kind of work demands patience and the right approach.

Here's what we were working with: a broken bolt buried in the track frame, threaded in just enough to make it a pain. The goal was to get it out clean without wrecking the surrounding material or the threads it was sitting in. No shortcuts.

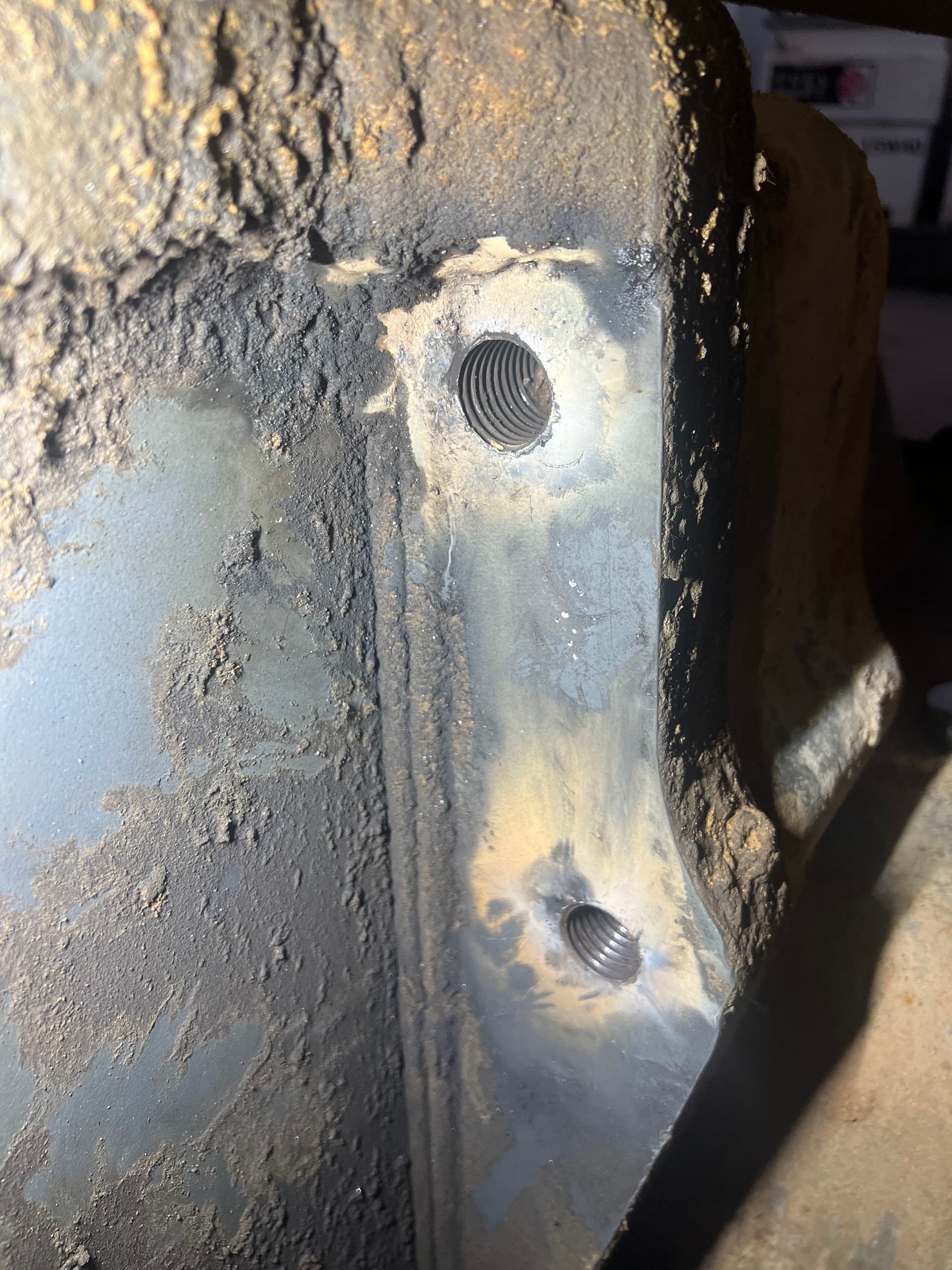

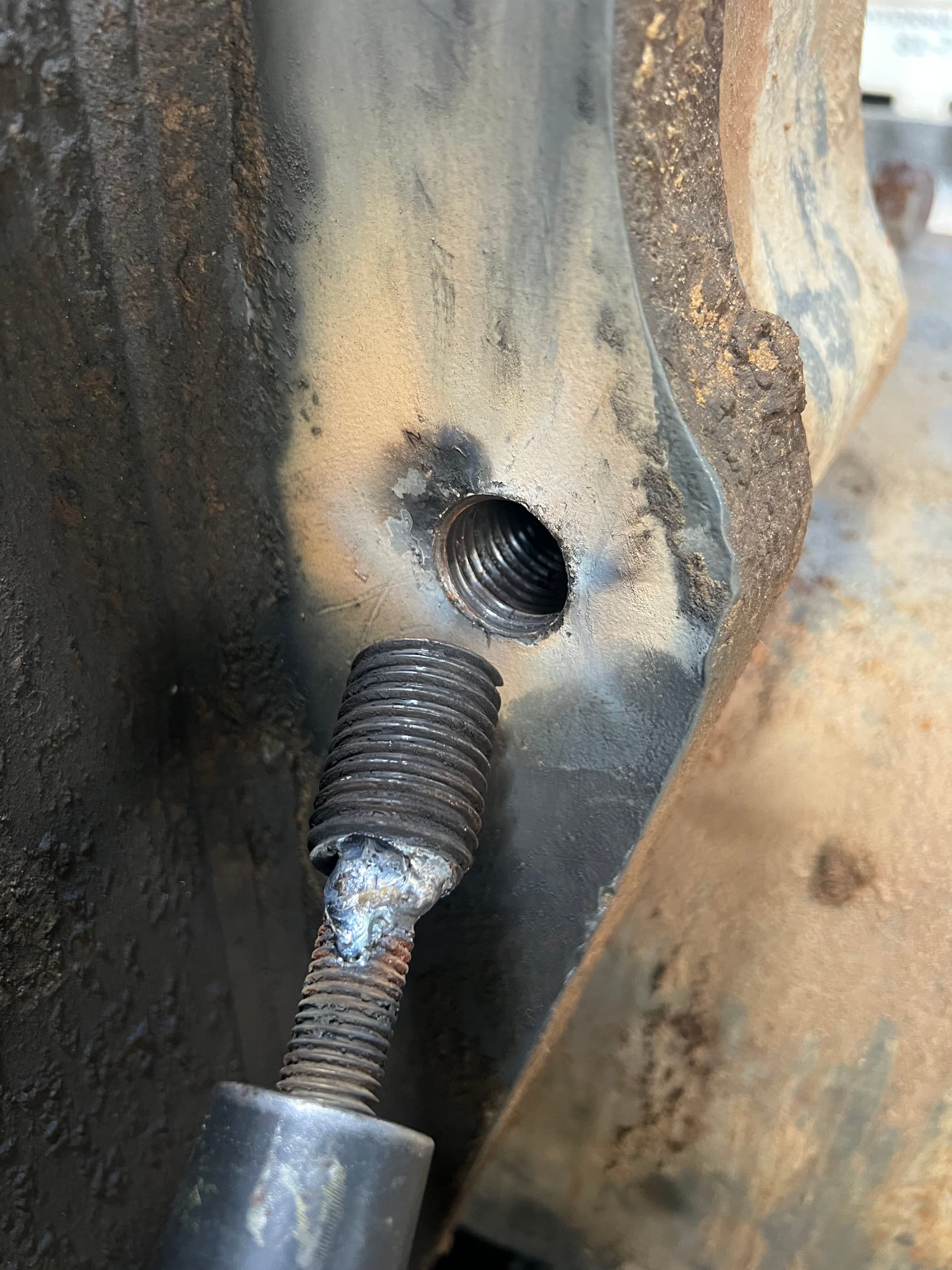

We welded directly onto the broken bolt stub to give us something solid to grab onto. Once we had a good bite, we worked it out carefully. The threads you can see in the cleaned-up holes are intact - that's the whole point. Getting the bolt out is one thing. Leaving the frame in usable condition is another.

This is the kind of repair that keeps your equipment moving instead of sitting on a trailer headed to a shop for days. Whether it's a track frame, an undercarriage component, or any other piece of heavy iron, a broken fastener doesn't have to mean a bigger problem. We handle these repairs on-site, which cuts down on downtime and keeps your operation running.
